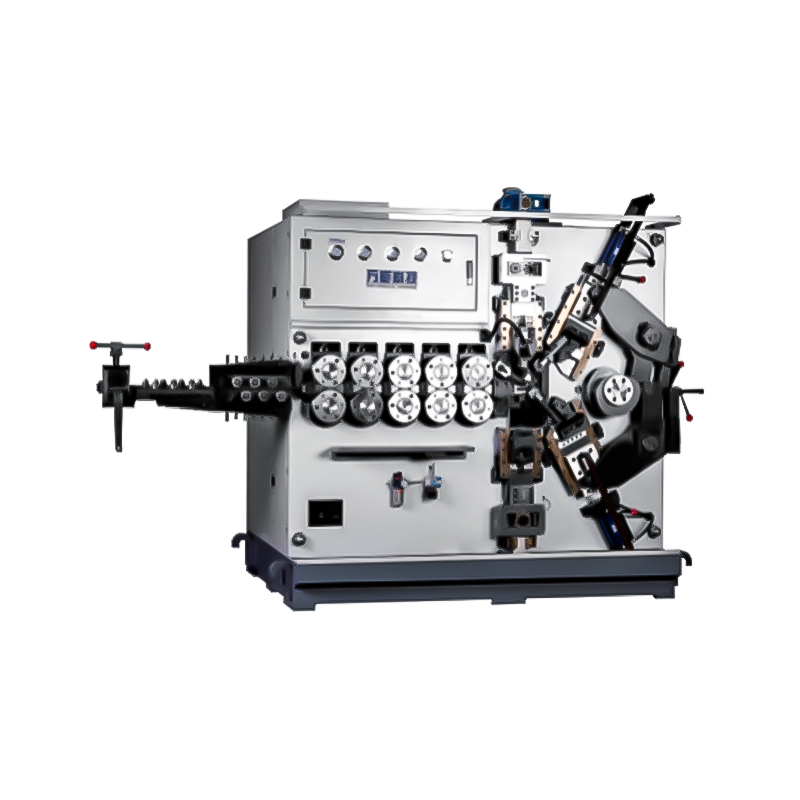

TK-5120 5AXES CNC SPRING COILING MACHINE
  • TK-5120 5AXES CNC SPRING COILING MACHINE

TK-5120 5AXES CNC SPRING COILING MACHINE

TK-5120

TK-5120 5AXES CNC SPRING COILING MACHINE

+86-575-83030220 Contact Us
  • Description
  • Additional Information

  • Function point

    1. Controlled with five axes: wire feed axis, cam axis,upper cutter axis, lower cutter axis and pitch axis.

    2. The five axes can work single-step or synchronously.

    3. Computer interface displayed in Chinese and English which makes the operation easy

    4. Equipped with right and left rotation cutter frame.

    5. Cutter can perform straight cut, opposite cut and twist cut.

    6. Computer has automatic programming function.





    Main Technique Parameter

    Style

    TK-5120

    Number of Axes

    Five axes(wire feed, pitch, cam, upper cutter, lower cutter)

    Wire diameter(Carbon steel wire)(mm)

    Φ6 〜Φ12

    Total power (kw)

    80

    Oil Quenching Line(≤1900N/mm²)

    ≤Φ10

    Max.Outside Diameter

    Φ150

    Wire Feed Length

    No Limitation

    Wire Feed Speed(m/min)

    58

    Rotation

    Left or Right

    Forming Way

    Double Points

    Number of Wire Feed Axes

    5 Pairs

    Cam Axis Motor (kw)

    11

    Pitch Axis Motor (kw)

    4.5

    Wire Feed Axis Motor (kw)

    30

    Cutter motor (kw)

    15x2

    Machine working state size(LxWxH)(mm)

    5000x2200x2500

    Main Host Weight(kg)

    12500

    Voltage

    3AC 380V/50HZ

About Company

WNJ is a leading Custom TK-5120 5AXES CNC SPRING COILING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
-  Customer orientation is considered with customized solutions
-  Offer services to overseas customers with global agent
-  A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
-  Over 200 skilled worker,50 technicians and one group of 20 engineers
-  Easy reconfiguration and adaptation to new production/manufacturing realities;
-  Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
-   Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
-   Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
