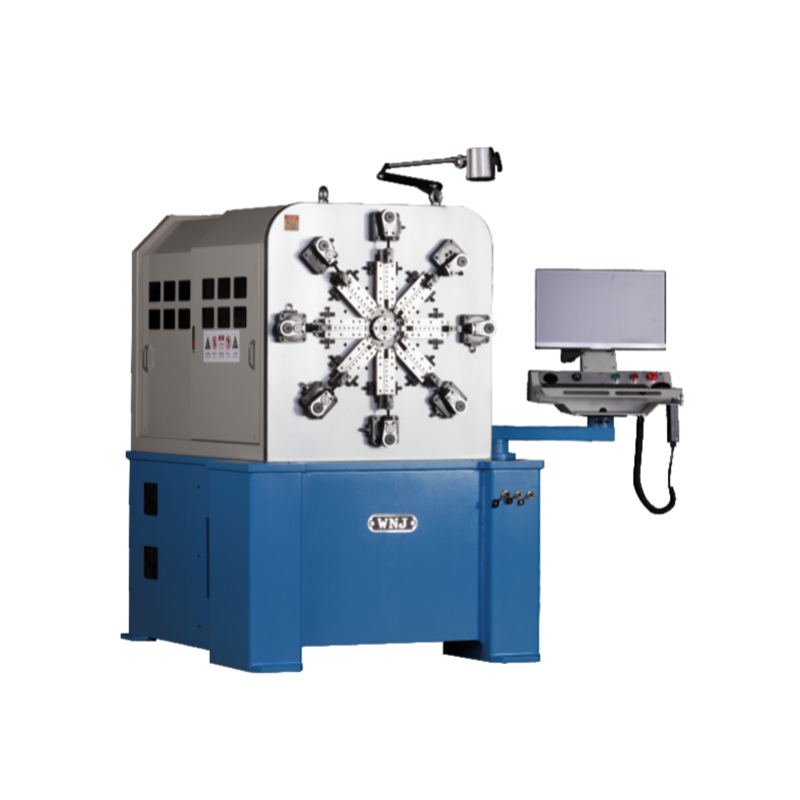

CNC-1225 12AXES CNC SPRING CAMLESS MACHINE
  • CNC-1225 12AXES CNC SPRING CAMLESS MACHINE

CNC-1225 12AXES CNC SPRING CAMLESS MACHINE

CNC-1225

CNC-1225 12AXES CNC SPRING CAMLESS MACHINE

+86-575-83030220 Contact Us
  • Description
  • Additional Information

  • Function point

    1. Adopts a camless design, with fast adjustment speed, low noise, high accuracy, and good stability.

    2. Controlled with twelve axes, can work single-step or synchronously.

    3. The slider adopts a precision linear guide mode and can be equipped with spinner and servo cutter.

    4. Wire feeding adopts rotary wire mechanism, making debugging more convenient

    5. Computer interface displayed in Chinese and English which makes the operation easy.

    6. Can make double torsion spring, straight spring, pagoda-shaped spring, rectangle spring, wire forming, scroll spring and special-shaped spring, etc.





    Main Technique Parameter

    Style

    CNC-1225

    Wire diameter(Carbon steel wire)( mm )

    Φ0.3-Φ2.5

    Max.Slide Stroke( mm )

    70

    Total Power(kw)

    14.8

    Number of Axes

    12 Axis

    Number of Wire Feed Axes

    2 Pairs

    Wire Feed Servo Motor(kw)

    2.7

    Rotary Wire Servo Motor(kw)

    2.7

    Slider Cutter Servo Motor(kw)

    1x8

    Rotary Mandrel Servo Motor(kw)

    1

    Machine working state size(LxWx H)(mm)

    1680x1720x1880

    Main Host Weight(kg)

    1630

    Voltage

    3AC 380V/50HZ

About Company

WNJ is a leading Custom CNC-1225 12AXES CNC SPRING CAMLESS MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
-  Customer orientation is considered with customized solutions
-  Offer services to overseas customers with global agent
-  A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
-  Over 200 skilled worker,50 technicians and one group of 20 engineers
-  Easy reconfiguration and adaptation to new production/manufacturing realities;
-  Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
-   Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
-   Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
