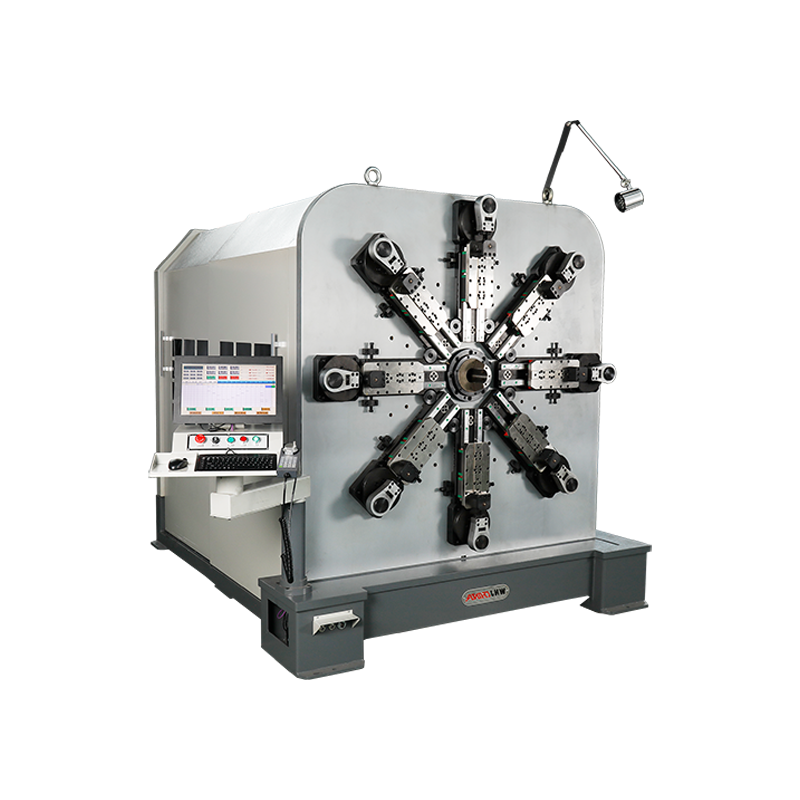

CNC-1280B 12AXES CNC SPRING CAMLESS MACHINE
  • CNC-1280B 12AXES CNC SPRING CAMLESS MACHINE

CNC-1280B 12AXES CNC SPRING CAMLESS MACHINE

CNC-1280B

CNC-1280B 12AXES CNC SPRING CAMLESS MACHINE

+86-575-83030220 Contact Us
  • Description
  • Additional Information

  • Function point

    1. Adopts a camless design, with fast adjustment speed, low noise, high accuracy, and good stability.

    2. Controlled with twelve axes, can work single-step or synchronously.

    3. The slider adopts a precision linear guide mode and can be equipped with spinner and servo cutter.

    4. Wire feeding adopts rotary wire mechanism, making debugging more convenient.

    5. Computer interface displayed in Chinese and English which makes the operation easy.

    6. Can make double torsion spring, straight spring, pagoda-shaped spring, rectangle spring, wire forming, scroll spring and special-shaped spring, etc.





    Main Technique Parameter

    Style

    CNC-1280B

    Wire diameter(Carbon steel wire)( mm )

    Φ3-Φ8

    Max.Slide Stroke( mm )

    170

    Total Power(kw)

    62

    Number of Axes

    12 Axis

    Number of Wire Feed Axes

    4 Pairs

    Wire Feed Servo Motor(kw)

    15

    Rotary Wire Servo Motor(kw)

    5.5

    Slider Cutter Servo Motor(kw)

    4.5x8

    Rotary Mandrel Servo Motor(kw)

    2.7

    Machine working state size(LxWx H)(mm)

    3500x2400x2500

    Main Host Weight(kg)

    15000

    Voltage

    3AC 380V/50HZ
